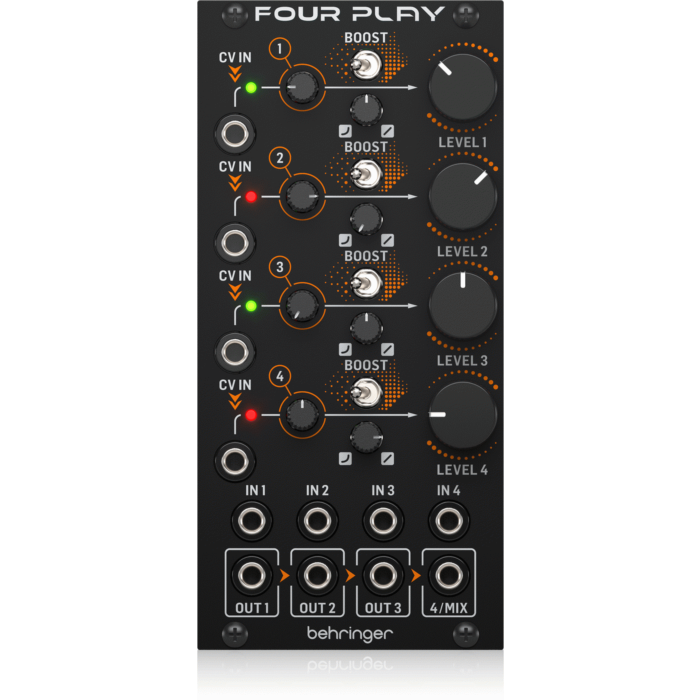

Behringer FOUR PLAY Quad Volt Module

SKU: 450688

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$159.00

Free Shipping over $50

Availability:

Online Perth Store Adelaide Warehouse Melbourne Warehouse

Ships within 24 hours

Description

Quad Voltage Controlled Amplifiers and Mixer Module for Eurorack

The FOUR PLAY is a feature rich quad VCA module with CV input attenuators, each with a bi-color LED to indicate CV input activity and polarity. Input boost switches add extra gain for lower level input signals. The curve controls allow you to setup the ideal CV response curve from fully exponential to linear, or any combination of the two. The level controls set the VCA gain and allow manual control of the signal output level, both when used as independent VCA’s or when used as a mixer. The VCA’s are DC coupled so can process both audio signals and CV signals.

Ultra-low noise quad VCA and mixer module
Each VCA features manual Level control for independent mixing
Dedicated CV attenuators with dual LED's for monitoring of bipolar CV signals
Adjustable VCA response curve from linear to exponential
Each CV input is normalled to the adjacent input for cascaded control
Each output is normalled to the mix input of the adjacent output for cascaded control
Each VCA features a Boost switch for increased output level (6 dB)
16 controls and switches give you real-time access to all important parameters
Eurorack specs: 12 HP, 100 mA +12V, 100 mA -12V
Ultra-low noise quad VCA and mixer module
Each VCA features manual Level control for independent mixing
Dedicated CV attenuators with dual LED's for monitoring of bipolar CV signals
Adjustable VCA response curve from linear to exponential
